1L-10L Suspension Cell Culture Bioreactor

+
Product Application
● Mammalian and insect cell culture ● Suspension cell culture
● Spherical microcarrier cell culture ● Development of production processes and sample development for vaccines, recombinant proteins, and monoclonal antibodies
● Process development, optimization, identification, scaling up and shrinking research ● Seed production, amplification, and small-scale production
● Develop process strategies using batch, flow, continuous, or infusion modes.

  • Product Features
  • Product Parameters
  • Control Accuracy and Range

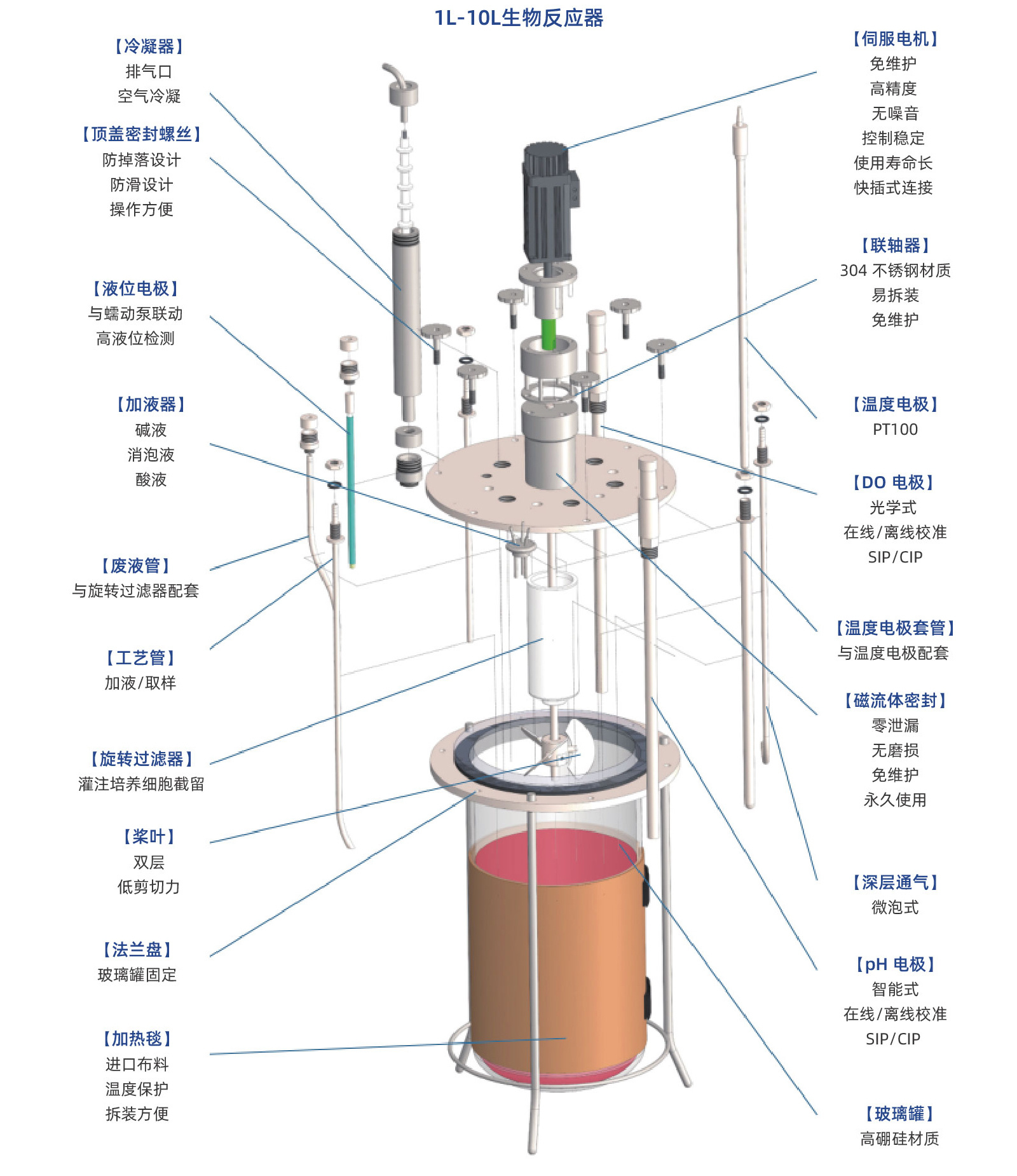

  • Product Disassembly Diagram

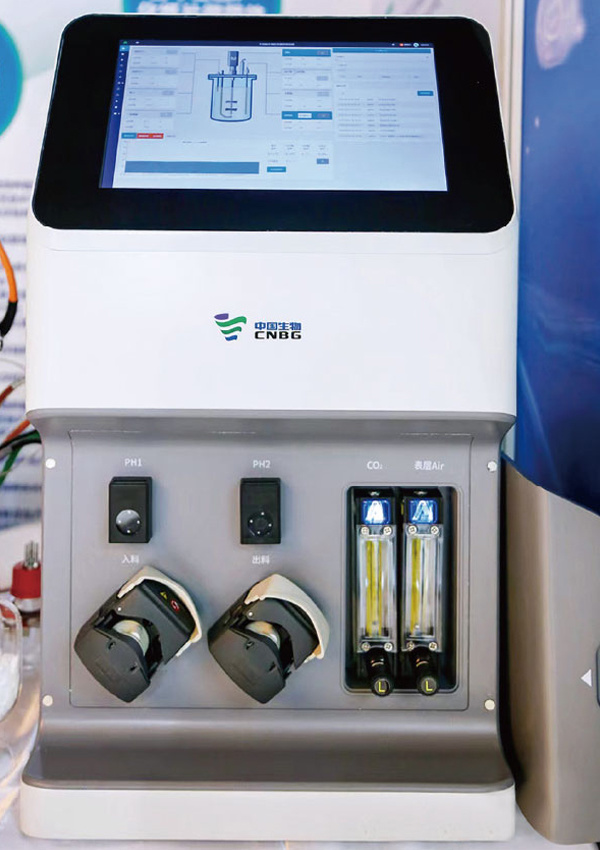

  • Case Presentation

  • ● Japan’s magnetic fluid sealing technology is adopted, offering advantages of no leakage, no wear, and maintenance-free operation

    ● Fabric heating blanket for uniform heating, with temperature control accuracy of ±0.1°C, capable of rapid temperature increase without overheating

    ● Dual-mode dissolved oxygen control with oxygen and compressed air, auto-switching to accommodate DO control in different growth stages

    ● Preset process parameters, real-time data, fault alarms, login/logout records, and operation logs are permanently stored and can be accessed for analysis at any time

    ● Internet connectivity enables remote monitoring and control via mobile or computer

    ● One-for-two, one-for-four, and one-for-eight integrated control systems

    ● Pre-set automatic restart function; When power is restored after an outage, the equipment will automatically resume the pre-failure control state

    ● Supports timed startup, shutdown, and automatic adjustment of control data

    ● Equipped with curve recording functionality

    ● Simple, quick, and safe pipeline operations

    ● Standard modular design with components and PLC software library

    ● Validated aseptic design and stability ensure process reliability

    ● Proven hardware design and control software

  • ● Working volume: 1L-10L (total volume 1.4-14L) ● Tank material: single-layer high borosilicate glass
    ● Mixing method: Top mechanical mixing (magnetic fluid sealing technology) ● Sterilization method: High pressure sterilization pot offline sterilization
    ● Ventilation method: Four way intake of oxygen, carbon dioxide, compressed air, and nitrogen ● Temperature control: heating blanket heating, optional condenser tube cooling
    ● Intelligent pH electrode, optical DO electrode ● Peristaltic pumps: Three sets of peristaltic pumps
    ● Process gas: 0.05MPa ≤ 0.15MPa, dry, oil-free, dust-free, with a diameter of 6 air pipe socket ● Current and voltage: 220V, 50/60Hz, single-phase 5A, potential balance
    ● Control cabinet: Plastic control cabinet, beautiful and lightweight
  • ●  Temperature control range: 20-40 ℃, control accuracy ± 0.1 ℃ ●  PH control range: 2-12, control accuracy ± 0.02
    ●  DO control range: 0-100% air saturation, control accuracy ± 5% ●  Speed control range: 0-200rpm, control accuracy ± 0.1rpm




  • 1L-10L悬浮细胞培养生物反应器-2.jpg
